Make a Continuous Loop Bowstring – Part 1

May 27, 2015

I’m not sure when the continuous loop bowstring came into being. If I had to guess, I’d say it was in the 1960’s when modern longbows were in their prime. If you buy a longbow today it will probably be equipped with a continuous loop bowstring. What are the advantages of a continuous loop bowstring? For one thing they are extremely strong. They are just one continuous loop of string; no splices. The loops are not spliced in as on a reverse-wrap bowstring, and you have the same type of loop on both ends of the string. The continuous loop bowstring is also one of the quickest and simplest bowstrings to make, probably why they were so popular with mass producers of bows.

It takes a couple of pieces of equipment to make a continuous loop bowstring, so if you only need one bowstring you are probably better off to just buy one. I’ve seen them in stores that carry traditional archery supplies for around $15.00 US. If you make a lot of bowstrings, it is far cheaper to make the two simple pieces of equipment and make your own strings. This post is a tutorial on how to make one of the two pieces of equipment that you will need. In the next post I will show you how to make the other piece of equipment, and in the third post we will go over how to make the actual string.

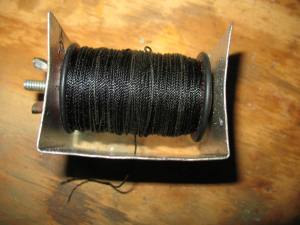

The first piece of equipment you will need is a serving dispenser as pictured below.

001

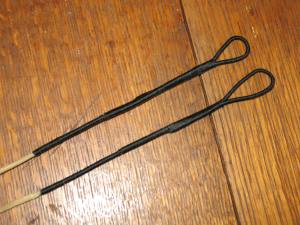

Serving is a small cordage that is wrapped around the loops to strengthen them and hold them closed.

001a

Serving is also wrapped around the center portion of the string to prevent wear at the point where arrows are nocked. You can buy a serving dispenser, but if you have a few simple tools it is super easy to make one. All that you need is a small strip of light gauge metal, some tin snips, a drill and drill bit, a bolt and wing-nut, and four washers. I used a scrap of metal and some odds-and-ends from my shop to build mine for zero dollars.

The first thing you will need to do is buy a spool of serving thread so you can build the dispenser to the proper dimensions. I bought my serving at Academy. I’m sure that other stores carry serving, and you can also order it on line.

002

My serving spool is two inches long.

003

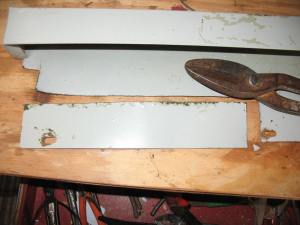

The dispenser will have to accommodate the length of the spool plus about an eighth of an inch of play on each end. In addition I will need to turn the metal up about an inch and three-quarters on each end to hold the spool. With these dimensions in mind, I cut a strip of metal 5 ¾ inches long by 1 ¾ inches wide.

004

005

I used a ruler and laid out the strip into three sections; 1 ¾” on each end and 2 ¼” in the middle.

006

007

I drew an X in each section to find the center.

008

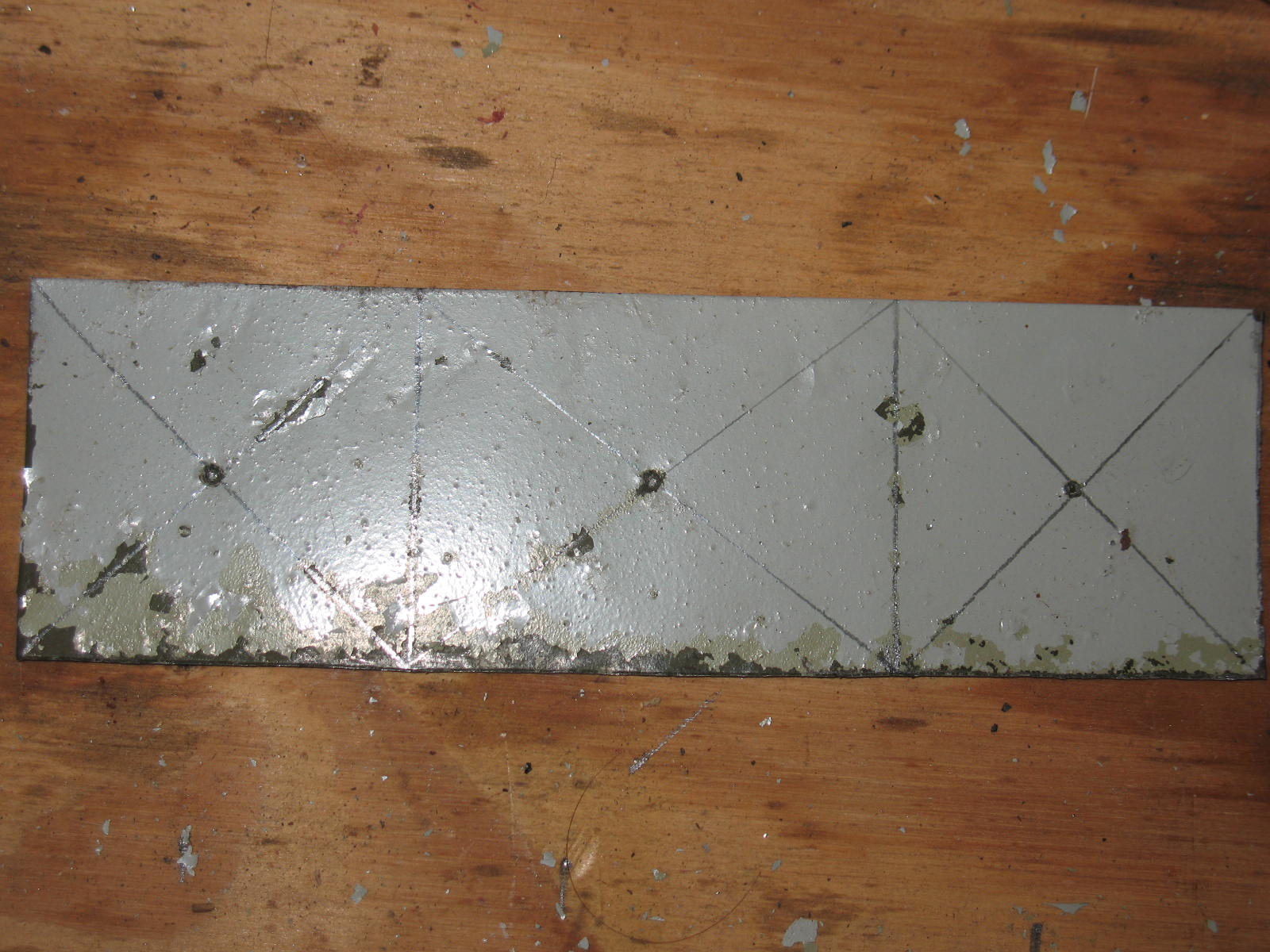

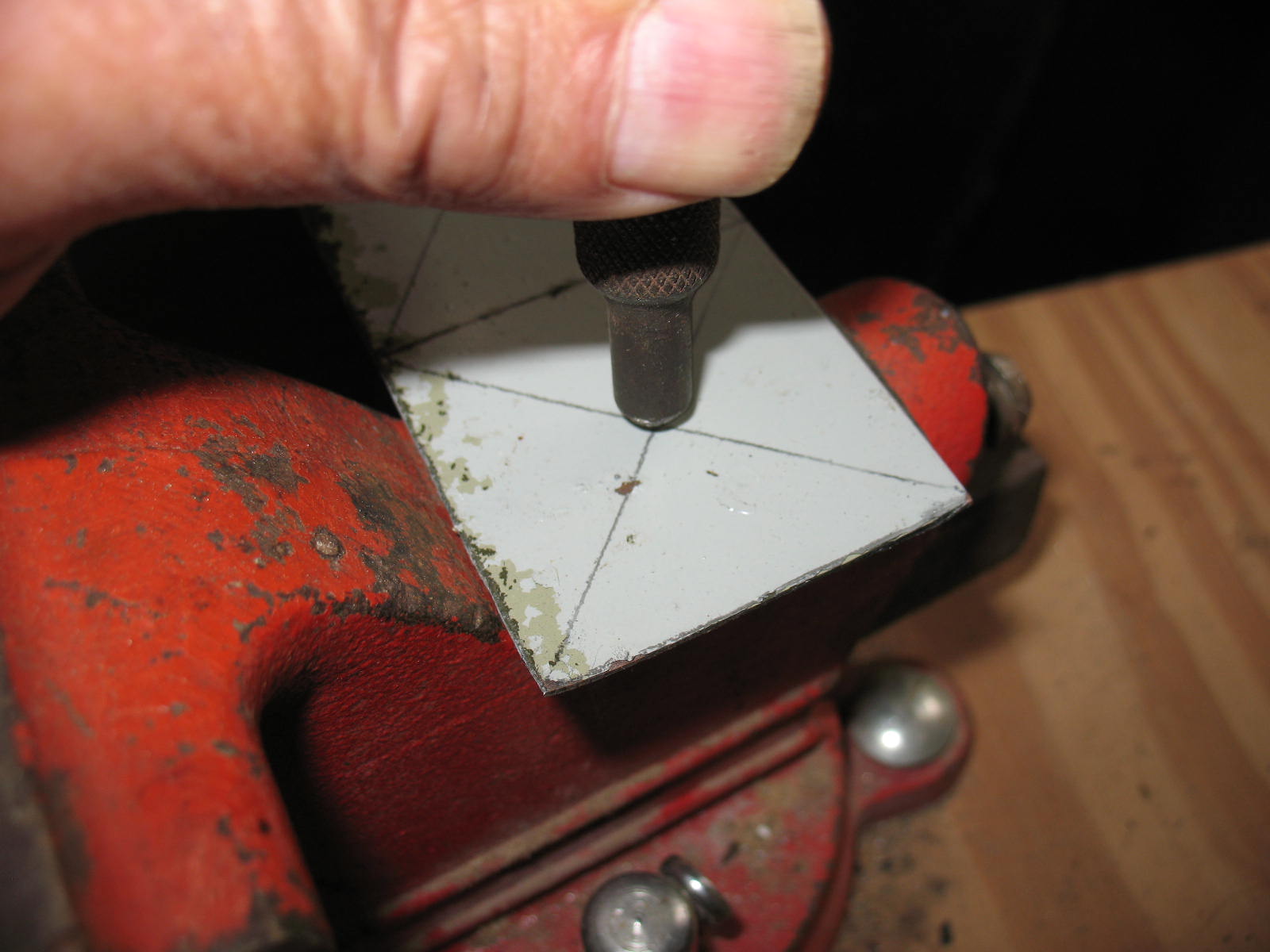

Then I used a hammer and punch to make a pilot dent in the center of each X.

009

010

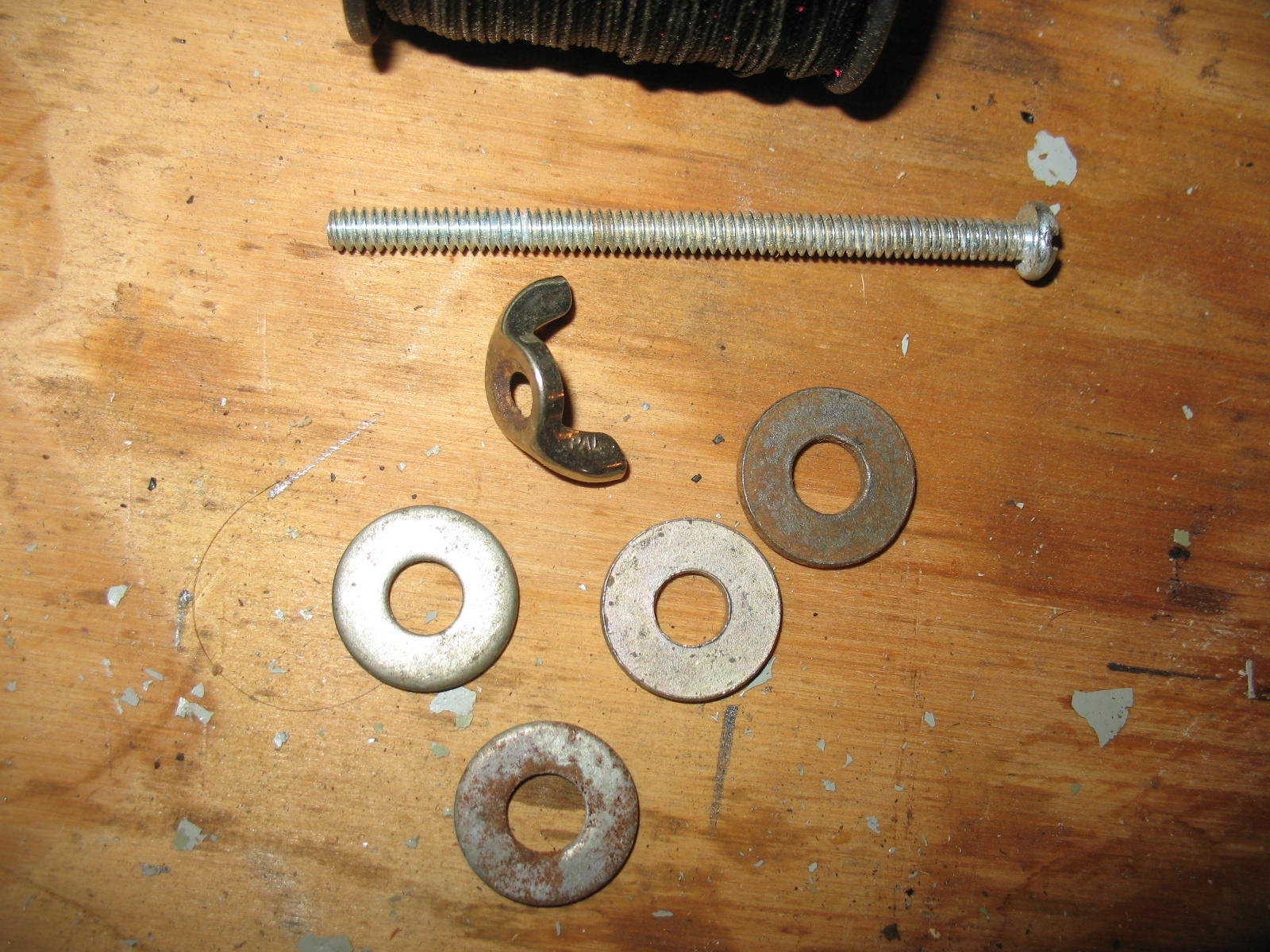

Now we are going to drill some holes in the strip, but first we need to get our other hardware together so that we can make sure that the holes are the right size. You will need a bolt that is long enough to go through the length of the spool plus about a half inch. The bolt also needs to be small enough in diameter to fit through the spool without binding.

011

012

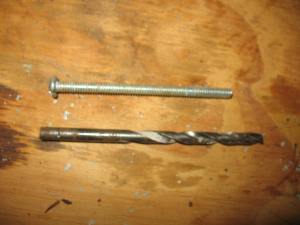

When you find, or buy, the right size bolt, nut, and washers; you will need a drill bit that is just a little larger in diameter than the bolt.

013

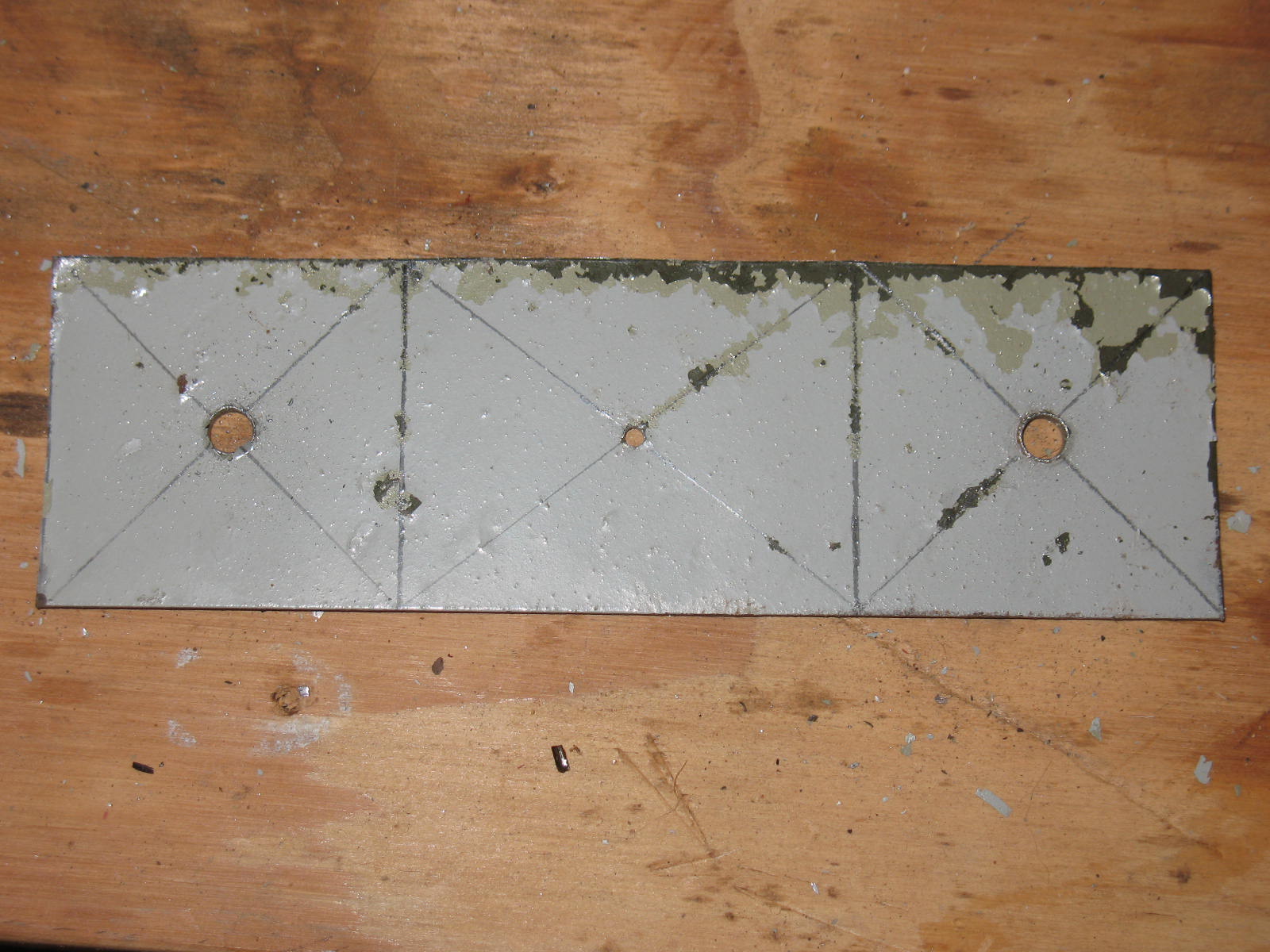

Use this bit to drill a hole in each of the two end sections, and drill a smaller hole in the center section.

014

015

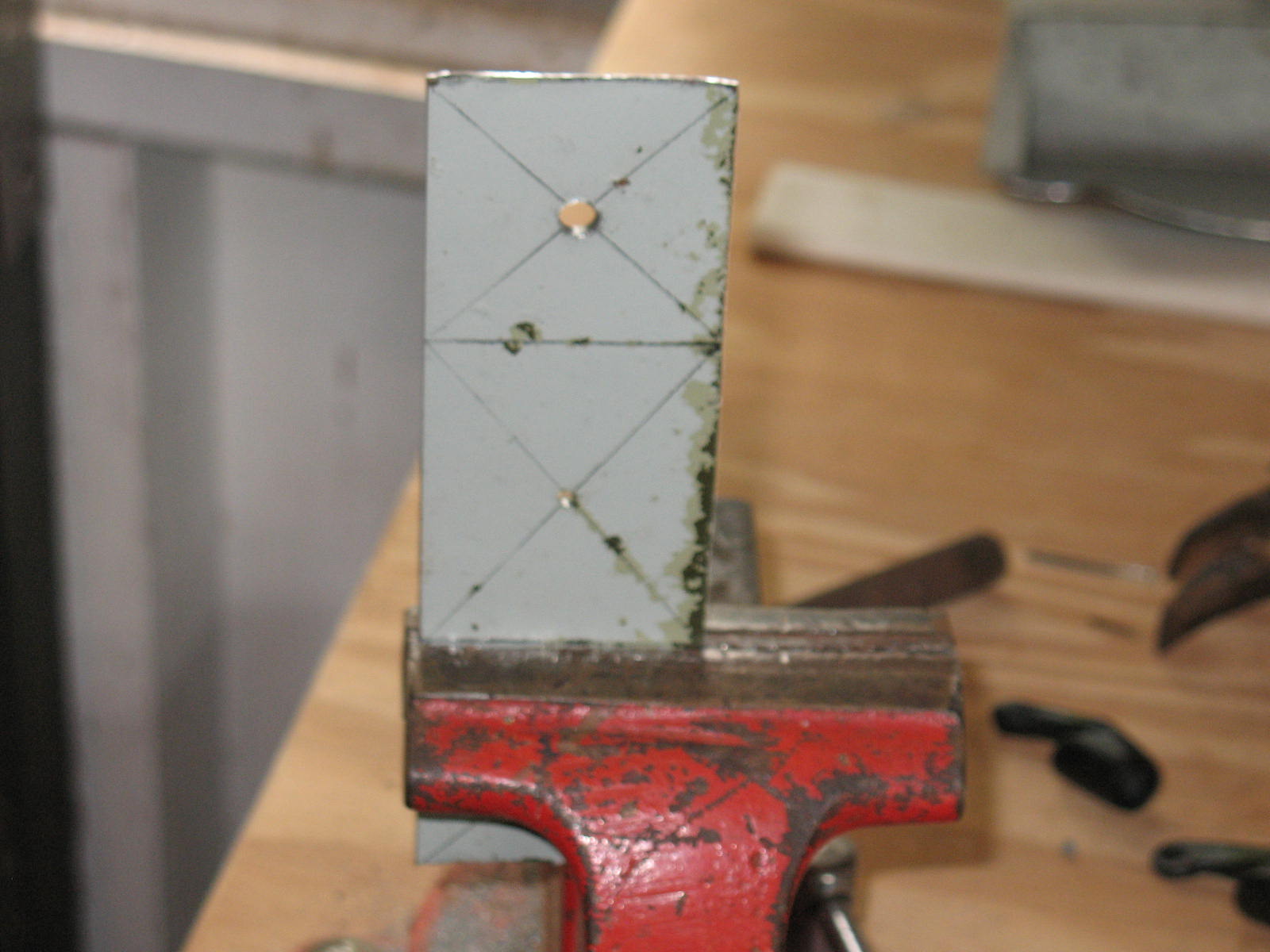

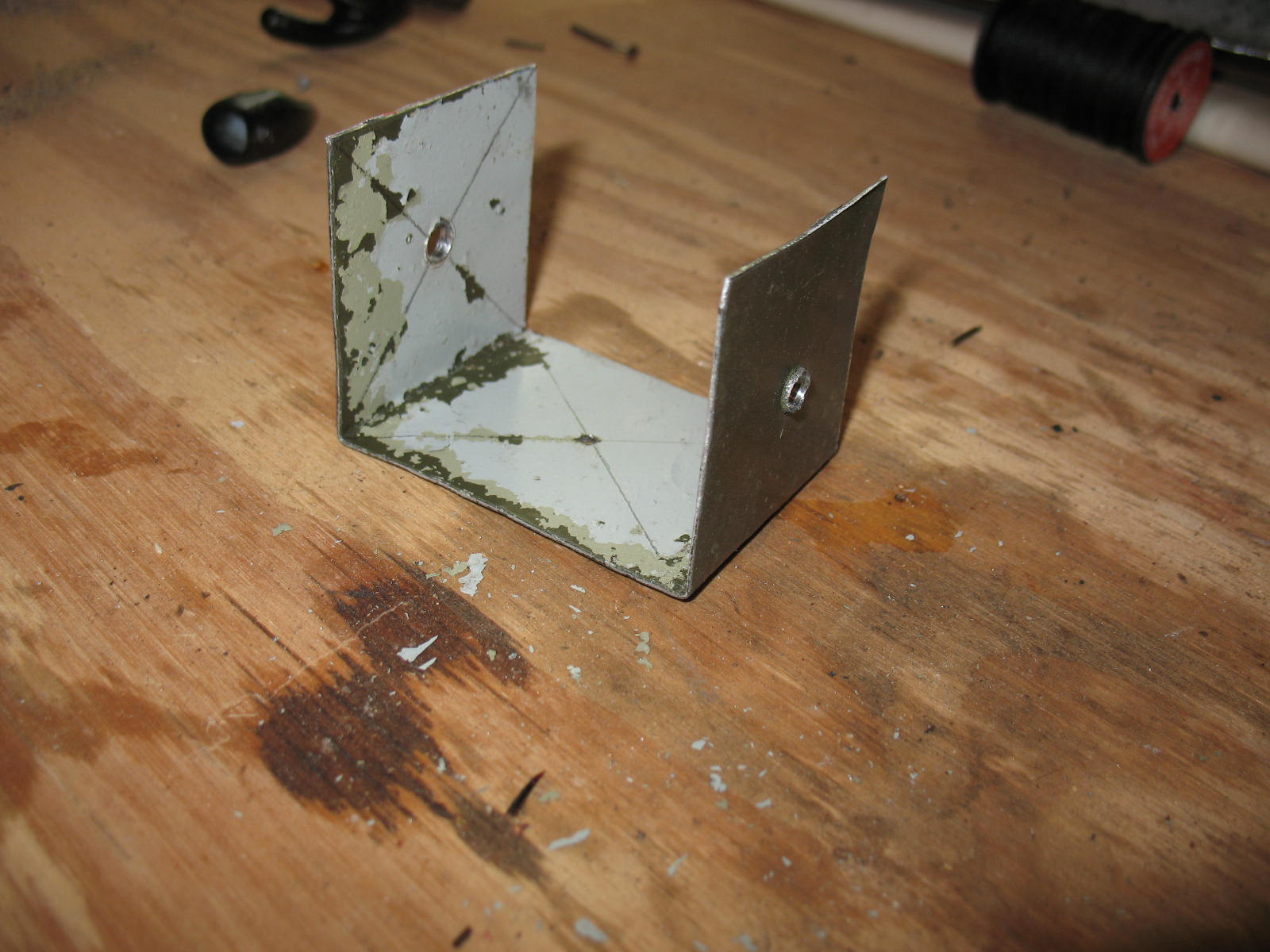

The next step is to put the metal strip in a vice and bend the end sections up at a 90 degree angle. Actually, I bent them a little past 90 degrees, and then bent the tops out a little by hand. This gives the ends a slight bow so that the center of the ends will contact the spool better.

016

017

019

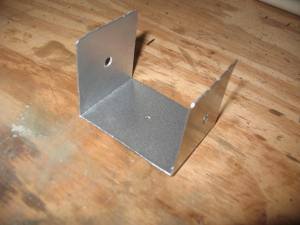

Use a file and/or sand paper to smooth out the holes and remove any burrs. I gave my dispenser a coat of silver spray paint, but this is not really necessary.

018

Now you’re ready to assemble the whole thing. First run your serving thread through the hole in the center section.

020

Then use the wing-nut, bolt, and washers to mount the spool. Put a washer on the inside and outside of each end section.

021

Use the wing-nut to adjust the tension on the spool. The tension is right when a slight tug will pull thread off of the spool; but when the dispenser is held up by the thread, more thread will not slip off on its own.

022

In the next post we will build an adjustable string jig. Super simple. It takes about 15 minutes.
