Make an Inexpensive Reflector Tarp for a Warm Survival Shelter

August 2, 2017

The wilderness survival community has, of late, taken a keen interest in using reflector blankets or reflector tarps to help create warmer lean-too shelters.  The idea is that if the inside of your lean-too has a reflective surface, it will reflect the heat of a campfire onto you as you lie in the shelter.

This is not really a new idea.  I can recall Mors Kochanski advocating for this quite a few years ago when he developed his concept of the “super shelter.”  Mors suggested placing a shiny Mylar survival blanket on the inside of your tarp to reflect radiant heat into the shelter.  More recently I have seen several companies selling survival blankets/tarps.  These survival tarps are made of more durable material than Mylar and they have a reflective surface on one side and grommets to aid in set-up of a shelter.  One problem with these commercial tarps is that the ones I have found are fairly small.  What I am going to show you here is how to make any size vinyl tarp into a reflective tarp that is pretty durable and quite a bit cheaper than a commercially made model.  Let me emphasize that I have only done this with vinyl tarps.  I don’t know how it would work with nylon or other fabrics.

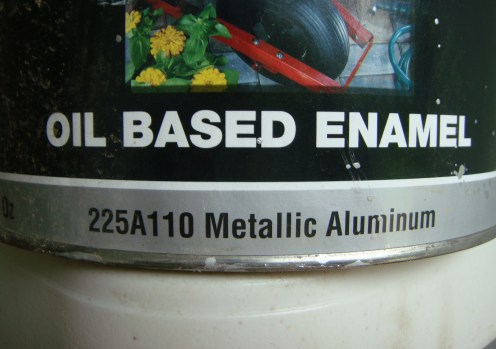

The idea for this tarp came to me in a blinding flash of the obvious when I was working on one of the out-buildings on my farm.  The building in question is about 25 years old and is covered in corrugated sheet metal.  The metal was starting to look a little on the rusted side, so I decided that I would paint it with some Rust Stop metallic aluminum paint from our local Ace Hardware store.  I bought a gallon of the stuff for about $30 US.

They also had quarts for about $10, but I knew that a quart wouldn’t be enough.  So, anyway, here I am standing up on a ladder painting this building when the sun comes up over the trees.  In about ten minutes I started feeling like a rotisserie chicken.  Man, I thought, this stuff really reflects some heat, and that’s when it hit me.  I wonder if I could paint this stuff onto a vinyl tarp?  Well, sure enough, I had about a half-gallon of paint left when I finished painting the building, so I decided to try a little experiment on a tarp.  I got an old tarp and painted a couple of square feet with the aluminum paint.  It flowed on smoothly and covered with one coat. It also didn’t appear to be damaging the vinyl in any way.  So far; so good.  I let it dry in the sun for a couple of hours before I gave it the durability test.  When it was dry I scraped it with my finger nails and there was no peeling.  I folded it into a crease, wadded it up, and just generally tried to make the paint crack or peal.  The tarp seemed to be completely flexible, and the paint adhered beautifully.  I thought to myself, “We may have a winner.”

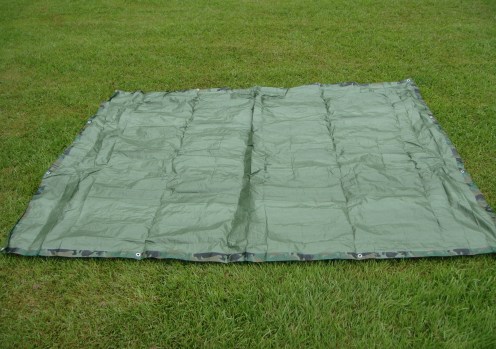

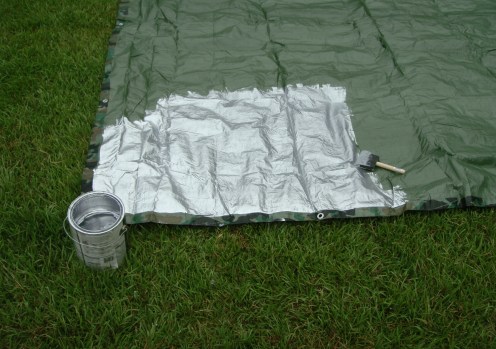

I unstrapped the 8’ x 10’ camo vinyl tarps that my wife and I have attached to our bug-out bags and went to work.  I laid a tarp out on the ground and used a three inch foam brush to apply the paint.

It went on easily and took about 45 minutes to apply.  I left the tarp out in the sun for a couple of hours to dry.

When it was nice and dry I gave it another round of durability testing, and it seemed to work great.  Even better, painting the two 8’ x 10’ tarps barely made a dent in my half gallon of paint.  I bet a quart would paint three or four of these tarps, so if you have friends that are into this kind of thing you could share the cost of the paint.

I did learn a couple of lessons from the first tarp that helped make the second one a little easier.  First of all, do this in the shade or on a cloudy day.  These things really, really reflect a lot of light and heat.  Second, use some tent stakes to stake down the corners before you paint.  This keeps the tarp from moving around as you paint it.

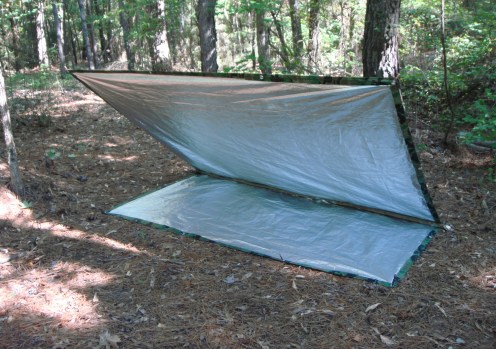

So there you go.  An easy way to turn a $15 Wal-mart tarp into a high dollar reflective survival tarp.

  1. You’re always coming up with down and dirty, money saving projects! ‘Preciate all you do for us, Hank!

  2. Frank permalink

    Based on subsequent pictures in newest posts, it appears that you did not use a vinyl tarp, but a camo version of the inexpensive, familiar blue tarp. I only correct you because when I went searching for “vinyl” tarps I kept finding 8X10 camo vinyl tarps for $80 and more. I was not going to put up $80 for a test, but once I figured out that it was a standard tarp, I went to Home Depot and bought a 10X12 for under $15 bucks. $9 for the paint and $5 for a small roller and I now have a great reflective survival tarp for under $30.

    I had tried to put together one of Mors Super Shelters but it was hard to get hold the three components in position while trying to attach them to each other. This reflective tarp gets me 2/3rds of the way there with only a clear piece of plastic needed for the front and sides.

    Thanks for this idea. And I still have some paint left over from the quart I purchased.

  3. used rustoleum stops rust ‘aluminum’ oil based and it appears to have done great on one coat!! testing maybe tomorrow and i’ll report back after.

    • Worked, first brush coat was streaky and highly translucent when viewed from the ‘outer’ with a light on but the 2nd coat with the roller i think was too thick to ‘cure’ properly and theres lotsa flaking. Not to be discouraged, i will try again with a longer indoor cure time. This flaky version reflects great, i tied in 5 smooth stones for additional tie-outs and it was making me sweat as i tied them on.
